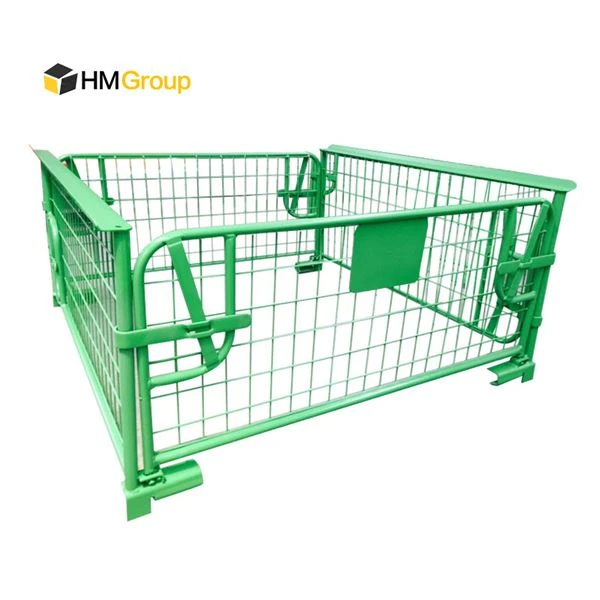

Folding Cia Hlau Pallet Cage
Folding cia hlau pallet tawb khav theeb tsim tsim kom yooj yim stacking thiab chaw -txuag efficiency, zoo tagnrho rau tus nqi- khaws cia thiab thauj.
Qauv No.: HM-CP-AU007
Sab Nrauv Loj: 1170L × 1170W × 500H mm
Hlau Guage: ￠ 4mm
Daim phiaj loj: 75x50 mm
Stacking: 4 siab
Loaded hauv 1x40'HQ: 488 teeb
Nto: zinc nto los yog hmoov coated
Yooj yim rau mount ntawm Australia pallet
Standout feature ntawm folding cia hlau pallet tawb yog lawv collapsible. Txawm tias folded los yog unfolded, lawv tuaj yeem yooj yim sib sau ua ke rau hauv cov ntoo pallets thiab muab tso rau saum ib leeg. Kev siv qhov chaw siab tshaj plaws txhais tau tias lawv txuag qhov chaw thaum lub sij hawm khaws cia lossis kev thauj mus los, ua rau lawv muaj txiaj ntsig zoo dua thiab muaj txiaj ntsig zoo.
Nta
1. Haum rau ob qho tib si Australian ntoo thiab yas pallets
2. Cov khoom siv steel Q235 - khov kho thiab ruaj khov
3. Kev nkag tau yooj yim los ntawm folding ib nrab vaj huam sib luag
4. Tshem tawm lub qhov rooj sab hauv - ua tiav nkag mus rau hauv thiab tawm ntawm lub pallet
Muaj khoom siv
Daim ntawv thov
Qhov txiaj ntsig ntawm kev siv folding cia hlau pallet tawb yog tias lawv muaj zog, ntev -ntev, thiab rov siv tau, me me steel khoom welded. Qhov no txhais tau hais tias lub tsev khaws khoom tuaj yeem siv tau ntev, uas txuag tau - tus nqi mus rau kev khaws cia. Tsis tas li ntawd, cov khoom no tuaj yeem hloov kho kom haum rau cov tsev khaws khoom tshwj xeeb, uas ua rau nws yooj yim rau khaws ntau hom khoom hauv lub tsev rau khoom.
Cim npe nrov: folding cia hlau pallet tawb, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized, yuav, nqe, kev muag, Tshuag, dawb qauv, ua nyob rau hauv Suav teb
Specification
|
Qauv No. |
Sab nrauv Dimension |
Tube Dimension |
Hlau Guage |
Daim phiaj Loj |
Loaded hauv 1x40'HQ |
|
LxWxH (mm) |
mm |
mm |
mm |
teeb |
|
|
HM-CP-AU003 |
1170x1170x780 |
19x1.6&25x1.6 |
4 |
75x50 |
365 |
|
HM-CP-AU007 |
1170x1170x500 |
19x1.6&25x1.6 |
4 |
75x50 |
488 |
|
HM-CP-AU008 |
1170x1170x300 |
19x1.6&25x1.6 |
4 |
75x50 |
612 |
|
HM-CP-EU009 |
1200x800x1200 |
25x1.5 |
4 |
100x100 |
261 |
|
HM-CP-AU010 |
1170x1170x1200 |
19x1.6&25x1.6 |
4 |
75x50 |
200 |
|
HM-CP-EU011 |
1200x800x800 |
22 |
4 |
100x100 |
440 |
|
HM-CP-AU012 |
1200x800x1000 |
22 |
4 |
100x100 |
378 |
|
Khoom siv |
Q235 steel hlau |
||||
|
Ua kom tiav |
Zinc / kub dip galvanized / hmoov txheej |
||||
|
Lus ceeb toom |
Customized lossis OEM kev txhawb nqa |
||||
Zoo sib xwsKhoom
Folding cia hlau pallet tawb muaj ntau yam kev xaiv thiab tuaj yeem kho raws li lub tsev khaws khoom xav tau. Los ntawm kev xaiv cov kev xaiv xws li cov khoom loj, kev kho deg, txoj kab uas hla, mesh loj, lub npe, ib nrab - qhib qhov rooj, thiab mesh sab kev sib txuas, koj tuaj yeem kho qhov zoo tshaj plaws cia pallet siab tawb rau kev cia thiab xa khoom ntawm koj cov khoom.
Xav paub yuav ua li cas los sib sau ua ke folding cia hlau pallet tawb rau ntawm ntoo pallet tsis tawg hws? Peb cov kauj ruam-los ntawm-cov lus qhia kauj ruam video qhia koj txog cov txheej txheem ua tiav ntawm kev sib sau ua ke ntawm cov ntoo pallet kom yooj yim sib dhos!
HM Group
Peb muab cov khoom zoo tshaj - ntawm tus nqi sib tw nrog kev xa khoom sai thiab muaj txiaj ntsig.
- Muaj kev tsim khoom thiab xa tawm txij li xyoo 2003.
- Export Quantity: Nyob ib ncig ntawm max 300 ntim hauv ib hlis hauv 2023
- 8 ntau lawm hauv 5 lub nroog: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Muab kev cai- tsim kom haum koj txhua qhov kev xav tau
- Kev them nyiaj yug OEM, ODM
Rhiav
HM Group muaj 3 cov hmoov coated ntau lawm kab hauv 5 lub hauv paus tsim, uas tso cai rau peb cov neeg siv khoom kom txuag tau tus nqi ntau dua los ntawm kev tau txais qib siab - zoo folding cia hlau pallet tawb. Nyob rau tib lub sijhawm, qhov ua tau zoo ntawm cov khoom tiav yog txhim kho.
QA & QC
HM Pawg pab pawg ntawm cov neeg soj ntsuam zoo ua qhov kev sim thiab tshuaj xyuas ntawm txhua theem ntawm kev tsim khoom, lav qhov zoo tshaj plaws los ntawm cov khoom siv raw mus rau cov hlau tawb pallet. Cov txheej txheem tswj xyuas kom zoo kom ntseeg tau tias tsuas yog sab saum toj -cov khoom lag luam tawm ntawm peb lub Hoobkas.
Ntimthiab shipping
- Tiv thaiv kom tsis txhob tawg nyob rau hauv shipping - stretch film qhwv
- Daim ntawv plhaub - cov npoo yog bundled- los ntawm cov ntawv plhaub
Wkaus cov neeg muas zaub hais
FAQ
Q: Yuav ua li cas siv lub tawb pallet?
--Nws ua haujlwm nrog ntoo, yas, lossis hlau pallet. Koj tuaj yeem siv lub forklift txav nws.
Q: Lub tawb pallet puas suav nrog ntoo pallet?
--Nws tsuas yog cov hlau, yog tias koj xav tau, peb kuj tuaj yeem pab koj.
Q: Dab tsi yog qhov clamping mechanism ntawm ntoo pallets kom lawv tuaj yeem ua haujlwm ua ke?
--Muaj hooks ntawm lub mesh, tawb pallet, thiab ntoo pallet txuas nrog lawv.
Q: Nws puas yooj yim los dhos?
--Peb yuav sib sau ua ke rau hauv peb cov nroj tsuag thiab xa lawv tuaj rau koj, yog li koj tsis tas yuav sib sau ua ke.
Q: Koj puas tseem xa tawm mus rau Tebchaws Europe?
--Yog, HM-CP-AU007 feem ntau yog xa tawm mus rau Australia, tab sis HM-CP-EU009 lossis HM-CP001 feem ntau xa tawm mus rau Tebchaws Europe.
