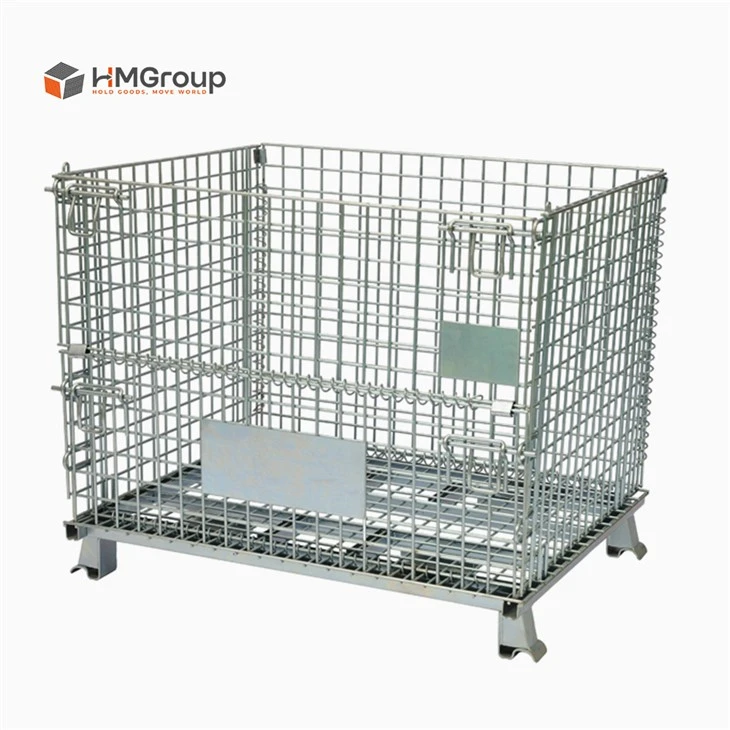

Steel Mesh Thawv
Steel mesh ntim yog qhov ruaj khov, muaj txiaj ntsig, thiab kev xaiv ruaj khov rau kev lag luam nrhiav kev cia siab thiab kev thauj mus los.
Qauv No.:HM-HD001
Sab Nrauv Loj: 1030L × 840W × 850H mm
Hlau Gauge: 6 mm
Daim phiaj loj: 50 × 50 mm
Loading peev: 1300 kg
Loaded hauv 1x40'HQ: 500 teeb
Khoom Description
Steel Mesh Thawv
Manufacturing Excellence
Tus kws tshaj lij
Warehouse Solutions
Kev ntseeg tus khub
Cov txiaj ntsig
Stacked: 4 qhib
Zinc / kub dip galvanized / hmoov txheej

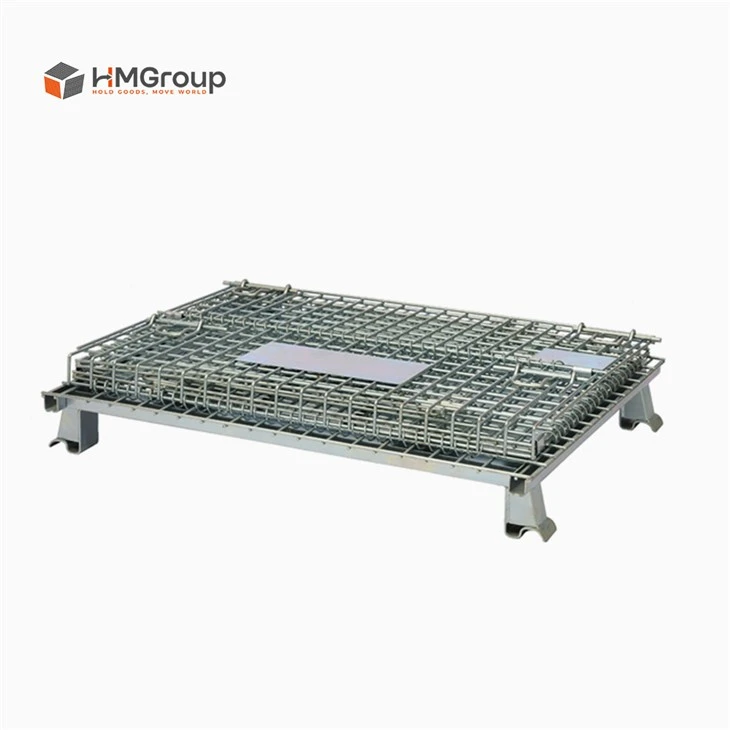

Collapsible kom txuag tau qhov chaw
Accessories: Log / puab PP ntawv lossis PP hollow ntawv / hnab
Muaj tsim: Sab saum toj hau / bar khiav / forklift phau ntawv qhia / nrog sab hauv divider
HM{0}}HD001
Qauv No.
1300 kg ib
Chaw thau khoom muaj peev xwm
1030x840x850 mm
Sab nrauv dimension
500sets
Loaded hauv 1X40'HQ
Steel mesh ntim yog qhov kev xaiv zoo tshaj plaws rau cov tuam txhab uas muaj qhov tseem ceeb ntawm kev ua haujlwm ntev, kev ua haujlwm thiab kev ruaj khov. Lawv muab ntau yam zoo rau lub tsev khaws khoom, suav nrog lawv cov nqi kho mob qis. Cov thawv ntim hlau yog welded ua los ntawm cov khoom siv ruaj khov thiab siab - cov ntaub ntawv zoo steel me me, ua rau lawv tiv taus kev siv hnyav rau lub sijhawm ntev. Kev siv qhov chaw hauv cov tsev khaws khoom yog qhov ua tau zoo dua vim tias muaj peev xwm ua tau stacked.Ntxiv rau, lawv yog ib puag ncig zoo thiab rov ua dua tshiab. Lawv tuaj yeem muab tais kom txuag tau qhov chaw thaum lub sij hawm rov ua dua, uas tuaj yeem txuag cov nqi hauv lub sijhawm ntev, ua rau lawv muaj kev xaiv pheej yig.
Qhov zoo
1. Collapsible - yooj yim rau kev thauj mus los, txuag chaw, txuag nqi
2. Txheem ib nrab - hinged rooj nkag
3. Yooj yim txav los ntawm forklift
4. Welded hlau ruaj qauv
5. Cov khoom siv hlau me me - Tus nqi tu qis tshaj
6. Ntau hom thiab specifications
Cov khoom Customized
Pab neeg tsim kev tshaj lij, muab kev pabcuam tshaj lij rau koj.
Daim ntawv thov
Lub thawv steel mesh yog tsim los rau kev lag luam xws li logistics, Kev Ua Liaj Ua Teb, thiab Warehousing, qhov no yog qhov ruaj khov thiab tuaj yeem siv nrog txhua txoj kev thauj khoom. Nws boasts lub peev xwm zoo heev yog li koj tuaj yeem ua kom muaj txiaj ntsig zoo ntawm koj cov txheej txheem thaum ua kom muaj kev nyab xeeb ntawm cov khoom khaws cia lossis thauj. Qhov hnyav no - lub luag haujlwm xaim pallet thawv muaj ntau- lub hom phiaj tsim uas tso cai rau nws yooj yim yoog rau kev siv hauv txhua qhov kev lag luam, txawm tias qhov kev xav tau tshwj xeeb. Qhov no tsis tsuas yog muab kev yooj yim rau cov neeg siv tab sis kuj ua rau nws nrawm thiab yooj yim los pib ua haujlwm txhua yam.
Cim npe nrov: steel mesh ntim, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized, yuav, nqe, kev muag, Tshuag, dawb qauv, ua nyob rau hauv Suav teb
Specification
|
Qauv No. |
Sab nrauv dimension |
Hlau Gauge |
Dimension ntawm Grid |
Chaw thau khoom muaj peev xwm |
Loaded hauv 1 * 40'HQ |
|
LxWxH (mm) |
mm |
mm |
kg |
teeb |
|
|
HM{0}}HD001 |
1030x840x850 |
6 |
50*50 |
1300 |
500 |
|
HM{0}}HD005 |
1230x1040x900 |
6.2 |
50*100 |
1000 |
350 |
|
HM{0}}HD010 |
1200x1000x1250 |
6 |
25*50 |
800 |
216 |
|
HM{0}}HD028 |
1200x1000x1140 |
5 |
50*100 |
500 |
270 |
|
Khoom siv |
Q235 steel hlau |
||||
|
Lwm yam tsim |
Sab saum toj hau / bar khiav / forklift phau ntawv / nrog rau sab hauv divider |
||||
|
Muaj khoom siv |
Log / hlau ntawv / PP hollow nplooj ntawv |
||||
|
Lus ceeb toom |
Customized lossis OEM kev txhawb nqa |
||||
Zoo sib xws Specification
Peb muab ntau yam qauv sib txawv ntawm cov thawv steel mesh xaiv los ntawm, yog li tsis muaj teeb meem loj npaum li cas, zoo li cas, lossis hom khoom koj xav tau khaws cia, peb tsuas muaj cov qauv zoo rau koj! Thiab koj tsis tas yuav ua raws li peb cov qauv qauv - yog tias koj xav tau kev hloov kho ntxiv lossis ib qho kev tsim tshwj xeeb uas haum rau koj cov kev xav tau, peb pab neeg npaj ua haujlwm rau nws! Hu rau peb hnub no thiab nco ntsoov qhia rau peb paub tias koj xav tau dab tsi thiab pib nrhiav qhov kev daws teeb meem zoo tshaj plaws rau koj!
Video
Peb cov thawv steel mesh muaj qhov tshiab thiab qhov chaw -txuag tsim uas tuaj yeem muab sib dhos lossis sib tsoo kom yooj yim kawg. Ua kom zoo tshaj plaws ntawm koj qhov chaw cia thiab nrhiav tau ntau yam txiaj ntsig ntawm peb cov thawv hlau mesh hnub no.
HM Group
——
Tuav cov khoom, txav ntiaj teb
- Muaj kev tsim khoom thiab xa tawm txij li xyoo 2003.
- Export Quantity: Nyob ib ncig ntawm max 300 ntim hauv ib hlis hauv 2023
- 8 chaw tsim khoom hauv 7 lub nroog: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Muab kev cai- tsim kom haum koj txhua qhov kev xav tau
- Kev them nyiaj yug OEM, ODM
Txheej txheem ntau lawm
HM Group tsim cov khoom zoo siab - cov khoom zoo los ntawm kev ua haujlwm zoo - cov txheej txheem tsim khoom thiab kev tswj xyuas nruj heev.
Kev Tswj Xyuas Zoo
HM Group siv cov txheej txheem tshuaj xyuas zoo thiab tswj xyuas kom ntseeg tau tias txhua yam khoom ua tau raws li cov qauv siab. Cov txheej txheem pib nrog kev sim cov khoom siv raw kom paub meej tias lawv ua tau raws li qhov xav tau tshwj xeeb. Thaum cov khoom dhau qhov kev tshuaj ntsuam thawj zaug, nws yog welded rau hauv hlau mesh nrog kev pab los ntawm lub tshuab vuam tsis siv neeg. Lub vuam lub zog yog tom qab ntawd kuaj xyuas kom ntseeg tau tias lawv ua tau raws li qhov xav tau los ntawm tus neeg siv khoom. Cov khoom tau dhau los ntawm kev tswj xyuas kev tswj xyuas kom ntseeg tau tias nws yog tsim los ua kom tiav. Los ntawm kev tshuaj xyuas cov khoom siv raw mus rau qhov kawg kev tswj xyuas zoo, HM Group cov txheej txheem tswj kev ua tau zoo yog nruj heev hauv kev lag luam.
Packing thiab shipping
1. Yooj yim thauj khoom thiab tshem tawm nrog tus qauv forklift tsheb lossis pallet jack
2. Daim ntawv plhaub - zam kev sib txhuam ntawm cov thawv xaim & cov hlua hlau
3. Hlau lossis yas strip - kho & tiv thaiv lub tawb
Daim ntawv pov thawj
Peb mob siab rau los qhia tias peb yog ib tus neeg muaj kev vam meej thiab tshwj xeeb rau txhua yam ntawm koj cov kev xav tau.
Cov neeg muas zaub hais li cas
Thaum kawg, nws yog qhov peb cov neeg siv khoom hais txog peb qhov tseem ceeb tshaj plaws. Peb txaus siab los ua ib tus khub uas muaj kev ntseeg siab thiab ntseeg siab, muab siab - cov khoom zoo uas ua tau raws li peb cov neeg siv khoom xav tau. Yog tias koj xav paub yuav ua li cas peb tsim peb cov khoom, peb zoo siab tos txais koj tuaj xyuas peb lub Hoobkas. Transparency yog ib qho tseem ceeb rau peb, thiab peb zoo siab tshaj los qhia koj cov txheej txheem tom qab peb cov txiaj ntsig saum toj kawg nkaus -notch. Yog li mus tom ntej thiab mloog peb cov neeg siv khoom yuav tsum hais li cas - peb cia siab tias koj yuav nyiam qhov koj hnov.
