Rhiav Cia Thawv
Peb cov thawv ntim khoom ua haujlwm tau tsim los pab koj npaj cov cuab yeej thiab cov cuab yeej siv tau zoo, ua rau koj qhov chaw ua haujlwm ua haujlwm tau zoo thiab tsis muaj teeb meem -dawb.
Qauv No.:HM-HD001
Hlau Gauge: 6 mm
Daim phiaj loj: 50x50 mm
Loading peev: 1300 kg
Loaded hauv 1x40'HQ: 500 teeb
Sab Nrauv Loj: 1030Lx840Wx850H mm
Khoom Description
Rhiav Cia Thawv
Manufacturing Excellence
Tus kws tshaj lij
Warehouse Solutions
Kev ntseeg tus khub
Cov txiaj ntsig
Stacked: 4 qhib
Zinc / kub dip galvanized / hmoov txheej
Collapsible kom txuag tau qhov chaw
Accessories: Log / puab PP ntawv lossis PP hollow ntawv / hnab
Muaj tsim: Sab saum toj hau / bar khiav / forklift phau ntawv / nrog rau sab hauv divider
HM{0}}HD001
Qauv No.
1300 kg ib
Chaw thau khoom muaj peev xwm
1030x840x850 mm
Sab nrauv dimension
500sets
Loaded hauv 1X40'HQ
Rhiav Cia Thawv yog qhov kev daws teeb meem rau kev teeb tsa cov cuab yeej, cov khoom siv, thiab cov khoom siv nyob rau hauv ib qho kev sib tsoo - ib puag ncig dawb. Tsim los nrog kev ua haujlwm hauv siab, cov ntim khoom no tuaj yeem muaj ntau qhov ntau thiab tsawg thiab teeb tsa kom haum rau koj qhov chaw ua haujlwm xav tau. Txawm hais tias koj khaws cov khoom me me lossis cov cuab yeej loj, qhov kev tsim kho ruaj khov ua kom txhua yam nyob hauv qhov chaw. Nrog cov yam ntxwv zoo li lub qhov rooj nkag tau yooj yim, cov chav tsev, thiab cov txee tuaj yeem kho tau, cov thawv no ua kom koj lub rooj cob qhia zoo thiab koj cov cuab yeej ua haujlwm, txo lub sij hawm nkim nrhiav khoom.
Qhov zoo
1. Load peev: 500 kg txog 1300 kg, haum rau cov kev xav tau sib txawv.
2. Stackable mus txog 4 khaubncaws sab nraud povtseg kom loj tshaj qhov chaw warehouse.
3. Ntau- txheej txheej txheej kom nkag tau sai dua thiab khaws cia.
4. Txhawb stacking thiab ua ke siv rau ntau yam xwm txheej.
Cov khoom Customized
Pab neeg tsim kev tshaj lij los muab kev pabcuam tshaj lij rau koj.
Daim ntawv thov
Hauv kev tsim khoom lag luam, kev cob qhia cov thawv ntim khoom pab cov tuam txhab khaws khoom zoo thiab tswj cov khoom, cov khoom siv raw thiab cov khoom tiav. Lawv cov qauv tsim thiab cov khoom siv ruaj khov tso cai rau cov chaw tsim khoom kom siv qhov chaw zoo tshaj plaws thaum txhim kho cov khoom siv tuav ntawm cov kab ntau lawm.
Cim npe nrov: rhiav cia thawv, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized, yuav, nqe, kev muag, Tshuag, dawb qauv, ua nyob rau hauv Suav teb
Specification
|
Qauv No. |
Ext.Dim. |
Hlau Guage |
Dimension ntawm Grid |
Chaw thau khoom muaj peev xwm |
Loaded hauv 1 * 40 HQ |
|
LxWxH (mm) |
mm |
mm |
kg |
teeb |
|
|
HM{0}}HD001 |
1030x840x850 |
6 |
50x50 |
1300 |
500 |
|
HM{0}}HD002 |
1230x1040x900 |
6.2 |
50x50 |
1700 |
350 |
|
HM{0}}HD003 |
1030x840x500 |
6 |
50x50 |
1000 |
500 |
|
HM{0}}HD010 |
1200x1000x1250 |
6 |
25*50 |
800 |
216 |
|
HM{0}}HD028 |
1200x1000x1140 |
5 |
50*100 |
500 |
270 |
|
HM{0}}HD004 |
1030x840x850 |
6 |
50*100 |
800 |
500 |
|
HM{0}}HD005 |
1230x1040x900 |
6.2 |
50*100 |
1000 |
350 |
|
HM-PPC01 |
1200x1000x1241 |
3.4 |
25*63 |
800 |
144 |
|
Khoom siv |
Q235 steel hlau |
||||
|
Ua kom tiav |
Zinc / kub dip galvanized / hmoov txheej |
||||
|
Kev xaiv |
Casters, Dividers: Kab rov tav, Dividers: Vertical, Forklift Tes Tsho, Forklift Sawb, Ib Nrab Teev Rooj vag, Hinged, Lockable Lids, Khiav Bar |
||||
|
Cov khoom siv |
Log / puab PP ntawv lossis PP hollow ntawv / hnab |
||||
|
Qhov chaw thov |
Warehouse, logistics, thiab recycling kev lag luam |
||||
|
Nta |
1. Collapsible - txuag chaw thaum tsis siv, zoo tagnrho rau kev rov qab taug kev |
||||
Zoo sib xws Specification
Peb lub rhiav lub thawv ntim khoom muaj nyob rau hauv ntau qhov ntau thiab tsawg kom haum rau cov kev xav tau sib txawv. Txawm hais tias nws yog ib lub lag luam me lossis lub tsev khaws khoom loj, koj tuaj yeem xaiv qhov tsim nyog tshaj plaws raws li qhov loj ntawm qhov chaw. Txhua lub tawb cia yog ua tib zoo tsim los xyuas kom meej tias kev siv ntau tshaj plaws ntawm qhov chaw cia thiab txhim kho kev ua haujlwm.
Video
Nrhiav ib txoj hauv kev los txhim kho koj qhov chaw cia khoom thiab ua kom koj cov khoom muag zoo dua? Cia peb qhia koj li cas peb lub rhiav lub thawv ntim khoom tuaj yeem pab tau.
HM Group
——
Tuav cov khoom, txav ntiaj teb
- Muaj kev tsim khoom thiab xa tawm txij li xyoo 2003.
- Export Quantity: Nyob ib ncig ntawm max 300 ntim ib hlis hauv 2023
- 10 chaw tsim khoom hauv 7 lub nroog: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Muab kev cai- tsim kom haum koj txhua qhov kev xav tau
- Kev them nyiaj yug OEM, ODM

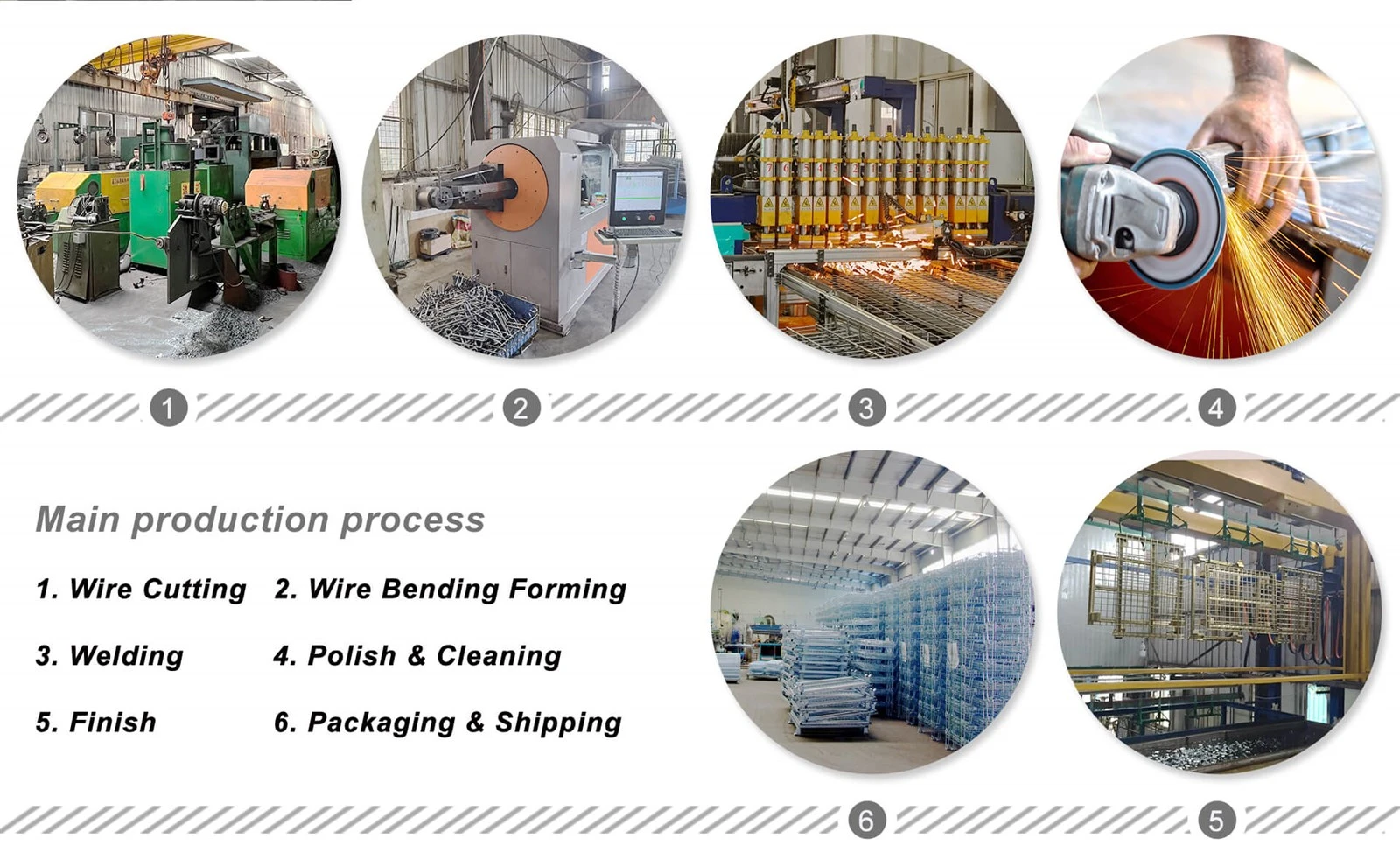

Txheej txheem ntau lawm
Peb lub rooj cob qhia pib cov txheej txheem ntau lawm nrog kev txiav cov xaim meej, ua kom txhua daim ua tau raws li qhov xav tau ntev thiab cov lus qhia tshwj xeeb rau lub rhiav cia thawv.
Kev Tswj Xyuas Zoo
Ua ntej pib tsim khoom, peb ua qhov kev sim nruj ntawm txhua yam khoom siv los xyuas kom meej tias lawv ua tau raws li peb cov qauv siab rau kev ua haujlwm ntev thiab lub zog. Qhov no ua kom ntseeg tau tias lub thawv ntim khoom ua haujlwm yog tsim los ntawm cov hlau me me, txhim kho lawv cov load-cov kabmob muaj peev xwm thiab siv tau ntev, thiab muab cov kev daws teeb meem ruaj khov.
Packing thiab shipping
1. Tiv thaiv kom tsis txhob tawg nyob rau hauv shipping - stretch film qhwv
2. daim ntawv plhaub - npoo yog bundled los ntawm daim ntawv plhaub
Daim ntawv pov thawj
Peb mob siab rau los qhia tias peb yog ib tus neeg muaj kev vam meej thiab tshwj xeeb rau txhua yam ntawm koj cov kev xav tau.
Cov neeg muas zaub hais li cas
Cov rhiav rhiav cia ntim no incredibly ruaj. Peb tau siv lawv rau ntau lub hlis, thiab lawv tseem tuav tau zoo txawm tias hnyav hnyav. Kev nqis peev zoo heev!
FAQ
Q: Dab tsi yog qhov load -cov kabmob muaj peev xwm ntawm lub rooj cob qhia lub thawv ntim khoom no?
A: Peb lub tawb nqa khoom muaj lub nra hnyav ntawm 500 kg txog 1300 kg, haum rau khaws cov khoom sib txawv.
Q: Yuav ua li cas muaj pes tsawg txheej ntawm rhiav rhiav cia thawv pawg ntawm feem ntau?
A: Lub tawb nqa khoom no tuaj yeem muab tso rau hauv 4 txheej, ua kom tag nrho ntawm qhov chaw ntsug thiab ua kom lub tsev khaws khoom ceev.
Q: Dab tsi yog kev lag luamwyog mesh thawvhaum rau?
A: Lub tawb nqa khoom siv dav siv hauv kev xa khoom, kev tsim khoom, khw muag khoom, kev lag luam zaub mov, kev lag luam tsheb thiab lwm yam lag luam rau khaws cov khoom.
